Functions, Applications and Efficiency of Seven-Axis Stone Engraving Machine

Functions, Applications and Efficiency of Seven-Axis Stone Engraving Machine

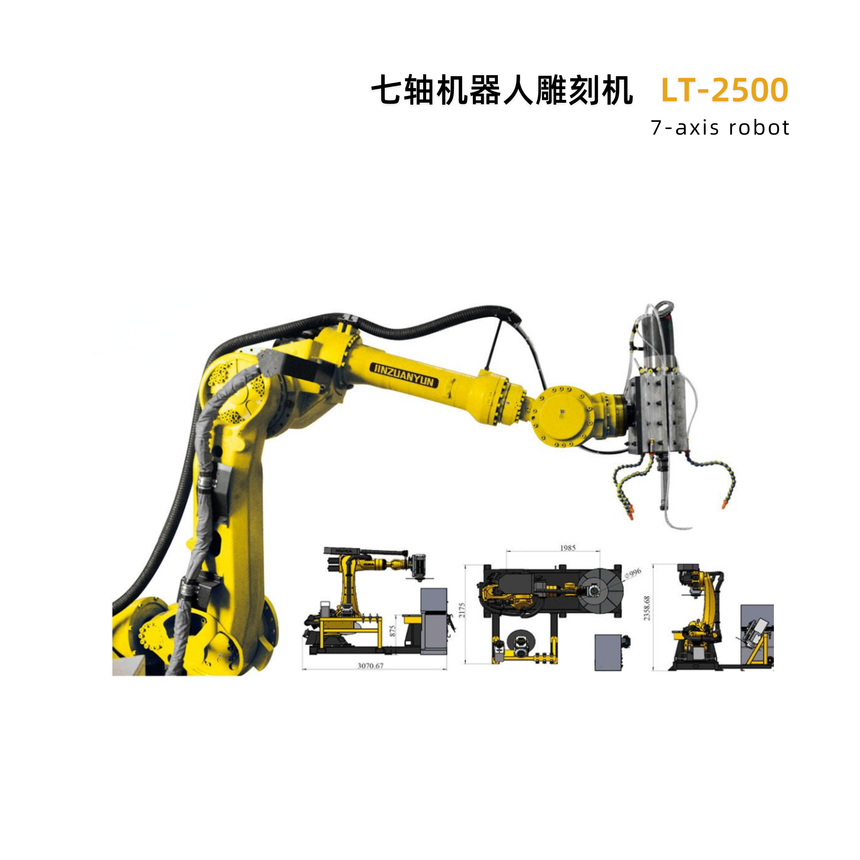

The seven-axis stone engraving machine is a top flagship model in the field of stone CNC processing. On the basis of the three linear axes (X, Y, Z), it adds 4 rotating axes (the conventional configuration is A, B, C, U axes, and some models can be flexibly configured). Relying on the core technologies of "seven-axis full linkage, multi-dimensional no dead angle, and integrated sawing, carving and grinding", it breaks through the processing limitations of five-axis models, realizes integrated processing of ultra-complex special shapes, ultra-large sizes and ultra-high precision, and focuses on top processing scenarios such as high-end customization, artistic creation and large-scale projects. Its functions, applications and efficiency all focus on the core positioning of "extremely complex, extremely precise and extremely efficient", which are detailed as follows.

I. Core Functions

With seven-axis full linkage technology as the core, this model integrates full-process processing functions such as sawing, carving, grinding and finishing, and is equipped with a high-end intelligent control system and a high-rigidity machine body structure. It can meet the ultra-complex processing needs of various stones. Compared with five-axis models, it has achieved a qualitative improvement in processing freedom, precision stability and complex shape processing capabilities. The specific functions are as follows:

• Seven-Axis Full Linkage Ultra-Free Processing (Core Advantage): It adopts a full linkage structure of three linear axes (X, Y, Z) plus four rotating axes (A, B, C, U). The rotating axes can realize 0-360° all-round rotation and ±90° arbitrary angle swing. The tool can adjust its attitude arbitrarily in space, completely eliminating the processing blind spots and tool connection marks of five-axis models. It can complete ultra-complex processing such as inner concave, undercut, multi-curved surface connection and three-dimensional hollowing that cannot be achieved by five-axis models, realizing "one-time clamping, full process and no dead angle" processing. No secondary clamping or cooperation of multiple equipment is required, which greatly improves processing precision and finished product integrity. The machine body adopts an integrally cast iron bed, which has undergone tempering treatment and secondary precision processing. The beam and column are designed with widened and thickened structures, which have extremely high rigidity and stable operation, effectively avoiding vibration during processing and ensuring the precision stability of ultra-complex processing.

• Integrated Composite Processing of Sawing, Carving and Grinding: It integrates full-process functions such as sawing, carving, grinding, finishing, chamfering and polishing, and is equipped with multiple heads that can be automatically switched (sawing head + carving head + grinding head). It can realize integrated completion of large plate cutting, special-shaped cutting, complex relief, three-dimensional round carving, deep cavity hollowing, fine grinding and mirror polishing, without manual transfer of workpieces, completely solving the problems of redundant traditional processing procedures and accumulated errors. Among them, the sawing head can realize arbitrary angle bevel cutting, arc cutting, deep groove drilling and hole making; the carving head can complete micron-level fine depiction; the grinding head can realize mirror surface treatment of the processed surface, with a surface roughness of up to Ra0.2μm, which can meet the top finished product standard without subsequent manual grinding. At the same time, it can carve 15mm thick natural marble with one knife, and the processing efficiency and precision are improved synchronously.

• Ultra-High Precision and Detail Processing: The positioning accuracy can reach ±0.005~0.01mm, and the resolution is <0.003mm. It supports RTCP tool tip following, seven-axis interpolation and dynamic error compensation technologies, which can accurately restore every detail of the design drawing. Whether it is complex relief textures, facial expressions of character portraits, or curved radians and anti-skid textures of stone bathtubs, it can achieve precise depiction without burrs or defects. At the same time, it is equipped with imported high-precision ball screws and square linear guides, which ensure stable movement and accurate tool feeding, further ensuring processing precision and avoiding tool breakage and material waste.

• Full Compatibility with Multi-Material and Multi-Specification Processing: It is suitable for various stones such as marble, granite, quartz stone, sandstone, jade and spar, and can also process materials such as ceramics, glass and high-end artificial stone. It can not only handle ultra-complex processing of hard stones, but also complete fine carving of soft stones; it can adapt to small-size high-end crafts, medium-size home decoration components, large-size landscape sculptures and architectural components, with a processing range covering 50cm×50cm to 500cm×300cm, meeting the processing needs of different scenarios. It is compatible with various stone carving knives and relief knives, adapting to the tool needs of different processing technologies.

• Intelligent and Stable Auxiliary Functions: It is equipped with high-end functions such as AI intelligent path optimization, automatic tool setting, automatic leveling, collision detection, power-off resuming carving and processing simulation, which can automatically optimize the tool path, reduce invalid movement, and avoid tool collision and material waste; it adopts a heavy-duty servo system and a large-torque spindle (10–22kW), with a spindle speed of up to 18000–30000rpm, providing sufficient and stable power and enabling 24-hour continuous high-intensity processing; it has a full-body waterproof and dustproof sealing design, standard with an in-machine spray cooling system and an automatic chip removal device, which can quickly discharge chips and extend the service life of the equipment and tool loss; it is compatible with various professional design software such as Type3, Artcam, Jingdiao, CAD/CAM and UG, and can directly import 3D models to realize seven-axis full linkage processing, with convenient operation and strong compatibility. At the same time, it can be equipped with a large-capacity tool magazine and automatic loading and unloading devices to realize automatic batch processing.

II. Main Application Fields

With the core advantages of "seven-axis linkage, integrated sawing, carving and grinding, and ultra-high precision", the seven-axis stone engraving machine is mainly used in top processing scenarios such as large-scale high-end stone processing factories, professional art sculpture studios, high-end home decoration and interior decoration, large-scale landscape projects and high-quality funeral services. It covers high-end segments of various industries such as artistic creation, architectural decoration and garden landscape, and accurately matches the processing needs of ultra-complex, high-difficulty and high-value-added products. The specific applications are as follows:

• High-End Art Sculpture and Cultural and Creative Field (Core Application): It is used for the processing of large-scale stone art sculptures, Buddha statues, animal sculptures, European relief groups and character portraits. It can accurately complete ultra-complex three-dimensional modeling, multi-curved surface connection, hollow carving and deep cavity processing, and perfectly restore the designer's creative concept, with clear detailed textures and strong artistic expression. It is suitable for professional sculpture studios, temples and Taoist temples, high-end cultural and creative enterprises, art galleries and other scenarios, and can process various small and medium-sized art ornaments and large-scale landscape sculptures. The finished products have extremely high artistic value and collection value, completely replacing traditional manual carving and solving the pain points of low efficiency, poor precision and insufficient consistency of manual carving.

• High-End Home Decoration and Star Hotel Decoration Field: It is suitable for the processing of high-end decorative components of high-end villas, star hotels and landmark buildings. It can process ultra-complex special-shaped stone background walls, curved door casings, hollow screens, European carvings, stair steps and high-end stone countertops. It focuses on covering the current popular high-end stone bathtub customization, and can realize one-machine forming of stone bathtubs, accurately processing all details such as bathtub curved surfaces, inner concave cavities, anti-skid textures and edge chamfers, without splicing, avoiding the gaps and easy falling off problems of traditional stone bathtub wrapping processing. The finished products are beautiful, durable and strong in integrity; at the same time, it can complete ultra-complex processing such as integrated stone bathroom suites and high-end decorative reliefs, creating a unique high-end decorative effect and helping enterprises seize the high-end home decoration bathroom market.

• Large-Scale Garden Landscape and Antique Architecture Field: It is used for the processing of components of large-scale garden landscapes, ancient building complexes, royal gardens and high-end parks. It can process ultra-complex components such as large-scale landscape sculptures, special-shaped stone railings, Xumi seats, brackets, special-shaped stone lamps, landscape stones and ancient-style relief components. It can batch process standardized high-end products or complete personalized customization according to design needs. It can complete the integrated processing of complex components without the cooperation of multiple equipment, balancing practicality and artistry, and is suitable for large-scale landscape projects, ancient building renovation and other scenarios.

• High-Quality Funeral and Memorial Project Field: It is used for the ultra-complex processing of high-end tombstones, memorial sculptures, martyr cemetery sculptures and celebrity monuments. It can complete the full-process processing of three-dimensional character portraits, complex reliefs, special-shaped steles and hollow patterns. The processing precision and artistry are far superior to those of five-axis models. It is suitable for high-end cemeteries, personalized tombstone customization, large-scale memorial projects and other scenarios, with a finished product qualification rate of nearly 100%, which greatly improves the added value of memorial stone products.

• Other High-End Precision Processing Fields: It can also be used in scenarios such as high-end jade carving, spar processing, precision stone component processing and stone sample production, adapting to the needs of high-end stone processing enterprises, jade processing factories and precision component processing factories. It can be used as the core equipment for high-end stone processing, realizing integrated processing of complex processes, reducing subsequent processing links and improving overall production efficiency; at the same time, it can be used for high-end CNC engraving teaching in vocational colleges, helping operators quickly master seven-axis processing skills, which is in line with the trend of intelligence and high-end upgrading in the stone processing industry.

III. Processing Efficiency

The core efficiency advantage of the seven-axis stone engraving machine is "integrated ultra-complex processing, high-precision and high-efficiency, and full-process no redundancy". Affected by stone hardness, processing complexity and equipment configuration, there are certain differences in efficiency performance, but it is far superior to five-axis and below models in ultra-complex processing scenarios, and equivalent to five-axis models in basic processing scenarios. It is overall suitable for the top processing needs of high difficulty, high added value and batch processing. The specific efficiency characteristics and parameters are as follows:

• Core Efficiency Advantages: The most prominent advantage is "seven-axis full linkage + integrated sawing, carving and grinding", which saves the cumbersome processes of "sawing machine cutting → transfer → secondary clamping → carving → grinding" in traditional processing, and the processing time of a single workpiece can be saved by 40%–70%; the seven-axis linkage design can intelligently optimize the tool path, reduce invalid movement and low idle stroke loss. Compared with five-axis models, the comprehensive efficiency in ultra-complex processing scenarios is improved by 40%–50%; multiple heads can be automatically switched, and sawing, carving and grinding are seamlessly connected, supporting 24-hour unattended continuous processing, reducing manual intervention and labor costs; the equipment has extremely strong stability and low failure rate. The whole machine has passed 24-hour aging test before leaving the factory to ensure full running-in of all accessories, reduce shutdown loss and further improve comprehensive processing efficiency. The processing speed of curves and straight lines can be kept consistent, and the operation is smooth.

• Specific Efficiency Parameters: For conventional configuration models, the idle speed is about 40–50m/min, and the recommended processing speed is 15–30m/min; the flagship version has an idle speed of up to 70m/min, and the recommended processing speed is 30–35m/min; the spindle speed is 18000–30000rpm, and the spindle power is 10–22kW, which can efficiently process various hard stones and high-end materials; typical efficiency reference (granite/marble):


￮ Standard relief tombstone (800×600mm): five-axis/four-axis models take 1–1.5 hours, while this model only takes 40–60 minutes;

￮ Conventional size (1.5–1.8m) stone bathtub: one-machine forming takes only 1–2 days, which is more than 50% more efficient than five-axis models (2–3 days);

￮ Small and medium-sized complex three-dimensional sculpture: 1–2 pieces can be completed per day;

￮ Large-scale sculpture (above 3m): the construction period can be reasonably planned according to the size, which is 30%–40% shorter than that of five-axis models;

￮ Simple special-shaped cutting/cutting: 30%–40% faster than traditional bridge cutting machines, with higher precision.

• Factors Affecting Efficiency: First, stone hardness and material: the processing efficiency of hard materials such as granite and jade is slightly lower, which requires layered and refined carving, while the processing speed of soft materials such as marble and bluestone can be improved; second, processing complexity: the efficiency of simple sawing and lettering is equivalent to that of five-axis models, and the efficiency of ultra-complex relief, all-angle special-shaped, hollow carving and other processes is lower than that of simple processing, but still far superior to the same type of processes of five-axis models; third, equipment configuration and operational proficiency: the configuration of high-power spindle, imported precision guide rails and lead screws, and AI intelligent path optimization system can further improve processing speed and stability; after operators are proficient in seven-axis linkage programming and equipment operation, they can reduce debugging and error correction time and give full play to the efficiency advantages of the equipment; in addition, the operation status of automatic chip removal and cooling system will also affect processing continuity and efficiency.

• Efficiency Comparison Advantages: Compared with five-axis and below stone engraving machines, this model has significant efficiency advantages in ultra-complex processing and all-angle processing scenarios, can reduce process redundancy, and its processing precision and finished product quality are far superior to both, especially suitable for high-end customization and ultra-complex special-shaped processing; compared with traditional manual carving, the efficiency can be increased by 15–20 times, completely solving the pain points of low precision, low efficiency and poor consistency of manual carving; compared with similar high-end seven-axis models, this model has a more stable structure, higher intelligence, more accurate processing path optimization, and 10%–15% higher comprehensive efficiency. At the same time, it is compatible with various design software and has stronger operational convenience; compared with ordinary composite models, it does not need additional configuration of grinding and polishing equipment, realizes "one machine for multiple uses", saves site and equipment investment, and has lower comprehensive processing cost, which is suitable for large-scale high-end stone processing enterprises.

In summary, the seven-axis stone engraving machine is a top equipment in the stone processing industry, with the core characteristics of "seven-axis linkage, integrated sawing, carving and grinding, ultra-high precision and extreme efficiency". It is suitable for top needs such as large-scale high-end processing enterprises, artistic creation and large-scale projects, and completely makes up for the processing limitations of five-axis models. Its ultra-free processing angle, full-process integrated processing capacity and efficient and stable performance can effectively help enterprises break through processing bottlenecks, improve product added value, seize the high-end market, and promote the upgrading of the stone processing industry towards intelligence, high-end and artistry.
